Asus BE9400

ASUS TUF Gaming BE9400 Tri Band WiFi 7 (802.11be) Extendable Gaming Router, Quad 2.5G ports, 3-step Port Forwarding, Smart Home Master, AiMesh support, and AiProtection for Network Security.

Tri-band WiFi 7 throughput of up to 9400Mbps with 320MHz, MLO and 4K-QAM, enabling range of up to 2500 square feet

Four 2.5G ports with three 2.5G LAN ports and one 2.5G WAN port

Dedicated gaming port, one-tap game prioritization and OpenNAT for accelerating gameplay

Advanced triple-level network security with AiProtection and pre-installed VPNs

Easy IoT device and VPN subnetwork setup, instant connections with Smart Home Master

Built to endure rigorous testing, ensuring reliability, stability, and long-lasting durability

WiFi 7-enhanced AiMesh enables a secure and extendable network with compatible ASUS routers

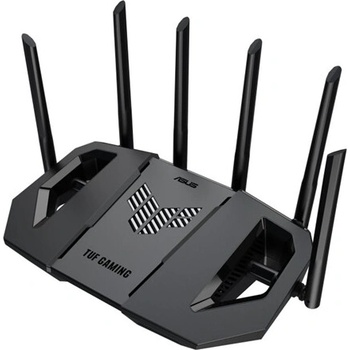

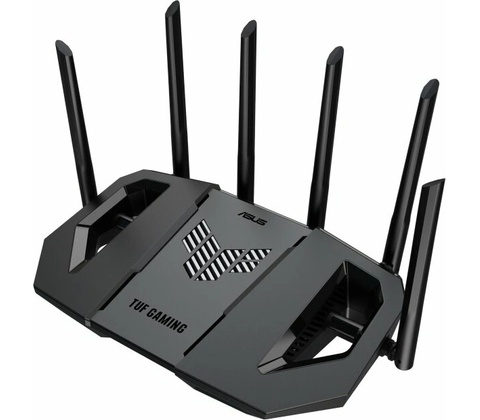

TUF Gaming BE9400 (TUF-BE9400)

Network Standard

IPv6

IPv4

WiFi 7 (802.11be)

WiFi 6 (802.11ax)

WiFi 5 (802.11ac)

WiFi 4 (802.11n)

IEEE 802.11g

IEEE 802.11b

IEEE 802.11a

Product Segment

BE9400 ultimate BE performance : 688+2882+5764 Mbps

WiFi Data Rate

• WiFi 7 (802.11be) (6GHz): up to 5764 Mbps
• WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
• WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

Antenna

External fixed antenna x 6

Transmit / Receive 6GHz 2x2 5GHz 2x2 2.4GHz 2x2

Processor 1.5GHz Quad-core Processor

Memory 256 MB Flash and 1 GB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth

Operating Frequency 6 GHz 5 GHz 2.4 GHz

Operating Mode

Repeater Mode

Media Bridge Mode

Access Point Mode

AiMesh Node Mode

Wireless Router Mode

I/O Ports 1 x 2.5Gbps for WAN 3 x 2.5Gbps for LAN 1 x USB 3.2 Gen1

Buttons

WPS Button, Reset Button, Power Button

LED Indicator

WAN(Internet) x1 6GHz x 1 5GHz x 1 2.4GHz x1

Power x1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 2.5 A current

Package Content

TUF-BE9400 Tri Band Gaming Router

RJ-45 cable

Power adapter

Quick Start Guide

Warranty card

Product Weight (g) 764 g

Product Dimensions 320 x 179 x 191 mm

AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node

Game

Game Boost / Acceleration, Mobile Game Mode, Gear Accelerator, OpenNAT (Game Profile), Gaming Port

Parental Control

Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule, • Maximum Parental Control Profile : 64

Guest Network "The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network, • Maximum Guest Network Rule : 2.4 GHz + 5 GHz: 3, Guest Network Connection Time Limit, Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal

Security

AiProtection, VPN, WPA/WPA2/WPA3 Personal

WPA/WPA2/WPA3 Enterprise

Open System & OWE, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

AiProtection

AiProtection, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS

VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark, Support Nord VPN

Traffic Control

Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History

WAN

• IPSec
• Static IP
• Automatic IP
• L2TP
• PPTP
• PPPoE

Internet Connection Type :, Dual WAN, 3G / 4G LTE dongle, 4G / 5G Auto Mobile Tethering, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, • PPPoE Relay

• SIP Pass-Through
• H.323 Pass-Through
• RTSP Pass-Through
• IPSec Pass-Through
• L2TP Pass-Through
• PPTP Pass-Through

LAN

DHCP Server, IPTV, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)

Wireless

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming

USB application 4G / 5G Auto Mobile Tethering, • FAT32

• ext4
• ext3
• ext2
• vFAT
• NTFS
• HFS+, Safely Remove Disk, Download Master, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges

User Interface

WEB: ASUSWRT, APP: ASUS Router APP

Administration

Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
