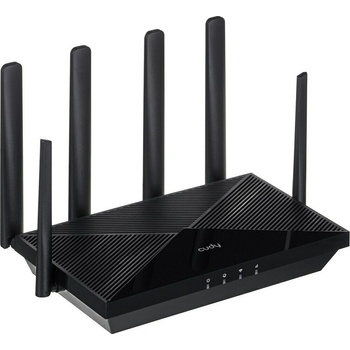

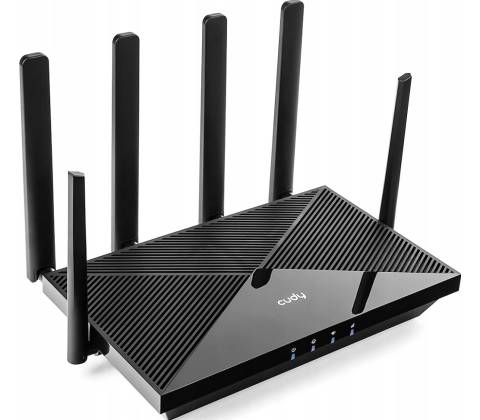

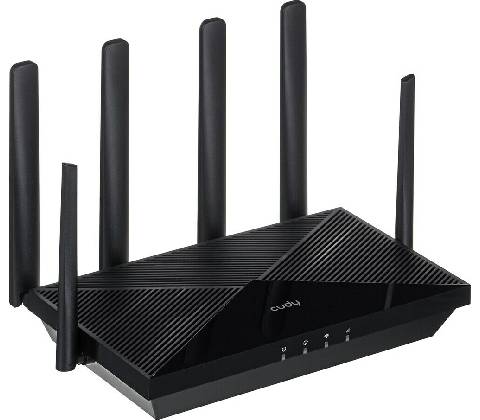

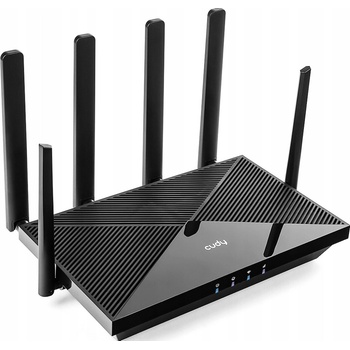

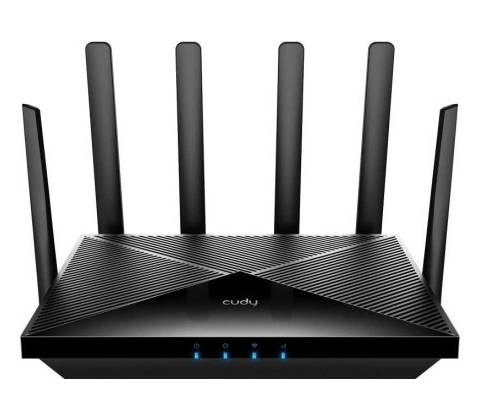

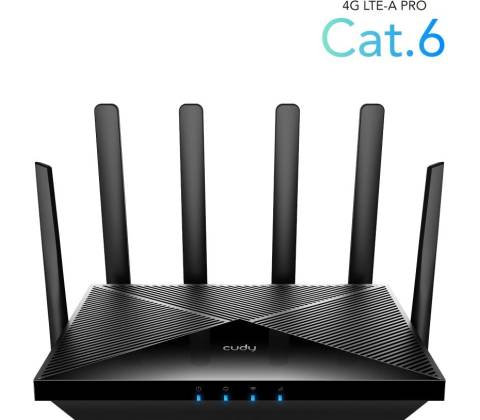

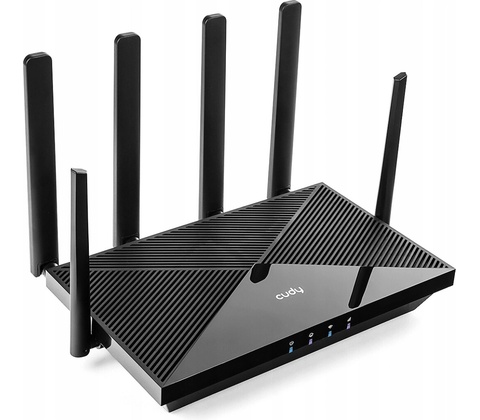

Cudy LT700_EU

AC1200 4G LTE CAT 6 Router 4G LTE advanced CAT.6 CPE

AC1200 dual band Wi-Fi

Dual SIM slots (Nano) 4*Gigabit Ethernet Ports 4*Detachable Cellular Antennas 2*Fixed WiFi Antennas

DNS over Cloud?are/Google

WireGuard/OpenVPN/PPTP/L2TP/Zerotier

Specifications

Data Speed

Wi-Fi 2.4GHz (802.11n/g/b, MIMO 300Mbps) 5GHz (802.11ac/an/a, MIMO 867Mbps)

LTE

• LTE FDD: Max 300Mbps (DL)/50Mbps (UL)
• LTE TDD: Max 226Mbps (DL)/48Mbps (UL)

DC-HSPA+ 42 Mbps (DL)/11.5 Mbps (UL)

WCDMA WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)

Hardware

• CPU: Mediatek Dual Core 880MHz
• 4G Module: Quectel EG120K (Qualcomm)
• DRAM: 256MB (2Gbit) DDR3
• Flash: 16MB (128Mbit)
• 4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN

2 x SIM Slots (Nano) 1 x WPS Button 1 x Reset Button 2 x Fixed WiFi Antennas 4 x Detachable Cellular Antennas

LED indicators (Power, WiFi, Internet,Signal)

Software

• DHCP:Server, Client List, Address Reservation
• NAT:Port Forwarding, Port Triggering, UPnP, DMZ
• Firewall: Mac Filter, IP Filter, Domain Filter
• DDNS: Compatible with 15 more DDNS providers
• VPN: WireGuard/OpenVPN/PPTP/L2TP/Zerotier
• DNS over TLS: Cloud?are/Google
• Schedule: Schedule Reboot /Wi-Fi Schedule

Internet Protocol version 4 or 6 (IPv4/IPv6)

Quality of Service (QoS)

TTL con?guration (Extend/Spoof)

Band Selection

Mobile Frequency Band

Europe/Middle East/Africa/Asia Paci?c/Brazil

• LTE-FDD:B1/B3/B5/B7/B8/B20/B28
• LTE-TDD: B38/B40/B41
• WCDMA: B1/B3/B5/B8
• Physical Product Dimension: 253x152.5x48.2mm (LxWxH)
• Package Dimension: 415x265x90mm (LxWxH)

Power

AC Power Adapter: Input: 90~260V Output: 12V, 1.5A

DC input (12V-1.5A) Barrel Plug

SMS

Send Message

Receive Message

Environmental

• Operation Temperature: 0° C to +45° C
• Storage Temperature: -40° C to +70° C
• Relative Humidity: 5% to 95% Non-Cond

Package Contents 4G LTE WiFi Router

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or Linux, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access)
