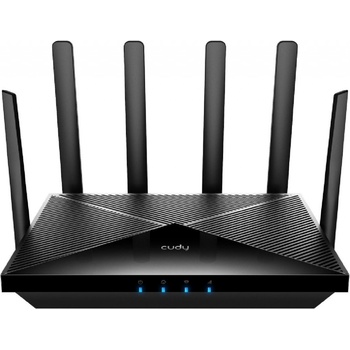

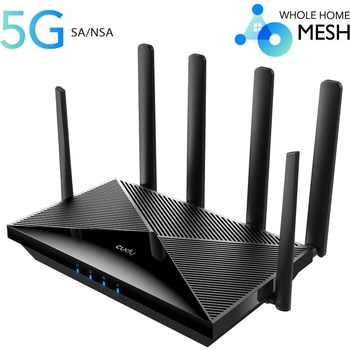

Cudy P5_EU

5G SA/NSA AX3000 Wi-Fi 6 CPE

• 5G SA/NSA CPE (Sub-6)
• AX3000 dual band Wi-Fi (2.4GHz & 5GHz)
• Qualcomm Chipset Inside
• Dual Nano SIM slots (Redundant SIM)
• 4 * Gigabit Ethernet Ports (WAN Failover)
• 4 * Detachable Cellular Antennas
• 2 * Fixed WiFi Antennas
• DNS over Cloudflare/NextDNS/Google
• PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier VPN

Specifications

Data Speed

Wi-Fi 2.4GHz (802.11ax/n/g/b, MIMO 574Mbps) 5GHz (802.11ax/ac/n/a, MIMO 2402Mbps) 5G Module (RM510Q)

Sub-6 GHz/mmWave

• 5G SA Sub-6: Max. 2.1Gbps (DL)/450Mbps (UL)
• 5G NSA Sub-6: Max. 3.3Gbps (DL)/650Mbps (UL)
• 5G NSA mmWave: Max.4.5Gbps (DL)/2.9Gbps (UL)
• LTE-FDD: Max. 2Gbps(DL)/200Mbps (UL)
• WCDMA: Max. 42 Mbps (DL)/5.76 Mbps (UL)

5G Module (RM505Q)

Sub-6 GHz

• 5G SA Sub-6: Max. 2.1Gbps (DL)/450Mbps (UL)
• 5G NSA Sub-6: Max. 2.5Gbps (DL)/650Mbps (UL)
• LTE-FDD: Max. 1Gbps(DL)/200Mbps (UL)
• WCDMA: Max. 42 Mbps (DL)/5.76 Mbps (UL)

5G Module (RM520N)

Sub-6 GHz

• 5G SA Sub-6: Max. 2.4Gbps (DL)/900Mbps (UL)
• 5G NSA Sub-6: Max. 2.8Gbps (DL)/550Mbps (UL)
• LTE-FDD: Max. 1.6Gbps(DL)/200Mbps (UL)
• WCDMA: Max. 42 Mbps (DL)/5.76 Mbps (UL)
• Hardware CPU: Qualcomm Dual Core 1GHz
• 4G Module: Quectel RM510Q or RM505Q (Qualcomm X55) or RM520N (Qualcomm X62)
• DRAM: DDR3 256MB (2Gbit)
• Flash: Nand 128MB (1Gbit)
• 4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN

2 x SIM Slots (Nano) 1 x WPS Button 1 x Reset Button 2 x Fixed WiFi Antennas 4 x Detachable Cellular Antennas

LED indicators (Power, WiFi, Internet, Signal)

Software

• DHCP: Server, Client List, Address Reservation
• NAT: Port Forwarding, Port Triggering, UPnP, DMZ
• Firewall: Mac Filter, IP Filter, Domain Filter
• DDNS: Compatible with 20 more DDNS providers
• VPN:PPTP/L2TP/OpenVPN/WireGuard/IPsec
• DNS over TLS: Cloud?are/NextDNS/Google
• Schedule: Schedule Reboot /Wi-Fi Schedule

Internet Protocol version 4 or 6 (IPv4/IPv6)

Quality of Service (QoS)

TTL con?guration(Extend/Spoof)

Band Selection

Physical

• Product Dimension: 253x152.5x48.2mm (LxWxH)
• Package Dimension: 415x265x90mm (LxWxH)

Power

AC Power Adapter: Input: 90~260V Output: 12V, 2.5A

DC input (12V-2.5A) Barrel Plug

SMS

Send Message

Receive Message

Environmental

• Operation Temperature: 0° C to +45° C
• Storage Temperature: -40° C to +70° C
• Relative Humidity: 5% to 95% Non-Cond

Package Contents 5G WiFi6 Router

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or Linux, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access)
