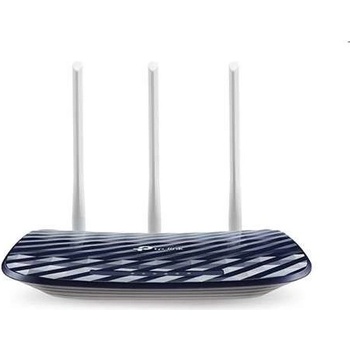

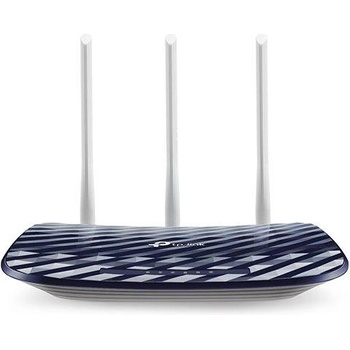

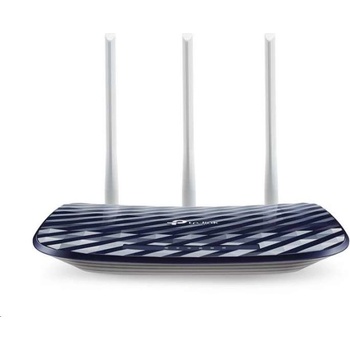

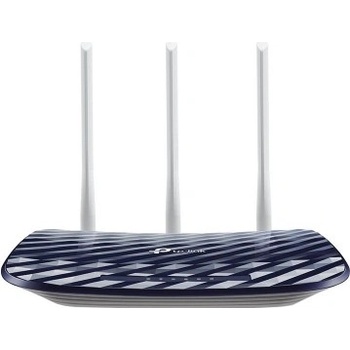

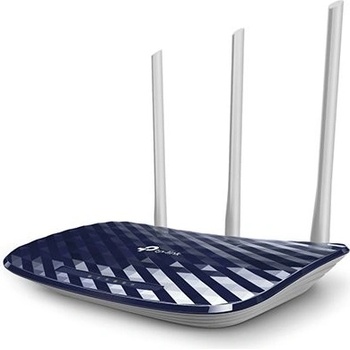

TP-LINK Archer C20v5

Archer C20

Bezdrôtový router s duálnym pásmom AC750

Podporuje štandard 802.11ac - ďalšia generácia Wi-Fi

Simultánne 2,4GHz 300Mbit / s a ??5GHz 433Mbit / s pripojenie, celková dostupná šírka pásma 733 Mbit / s 3 externé antény poskytujú stabilný všesmerový signál a vynikajúce bezdrôtové pokrytie

WIRELESS

Standards Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC750

• 5 GHz: 433 Mbps (802.11ac)
• 2.4 GHz: 300 Mbps (802.11n)

WiFi Range 2 Bedroom Houses 3× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity Medium

Dual-Band

Allocate devices to different bands for optimal performance

Working Modes Router Mode

Access Point Mode

Range Extender Mode

HARDWARE

Processor Single-Core CPU

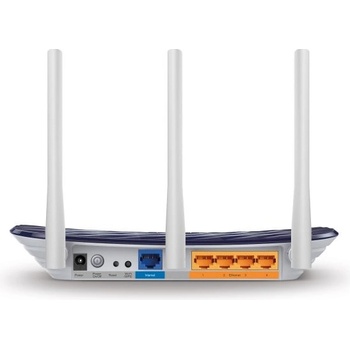

Ethernet Ports 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports

Buttons WPS/Wi-Fi Button

Power On/Off Button

Reset Button

Power 9 V ? 0.6 A

SECURITY

WiFi Encryption WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network

SOFTWARE

Protocols IPv4

IPv6

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

NAT Forwarding Virtual Server

Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

DHCP Address Reservation

DHCP Client List

Server

DDNS NO-IP

Comex

DynDNS

Management Tether App

Webpage

Check Web Emulator>

PHYSICAL

Dimensions (W×D×H) 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)

Package Contents Wi-Fi Router Archer C20

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

• Environment Operating Temperature: 0?~40? (32? ~104?)
• Storage Temperature: -40?~70? (-40? ~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE:
