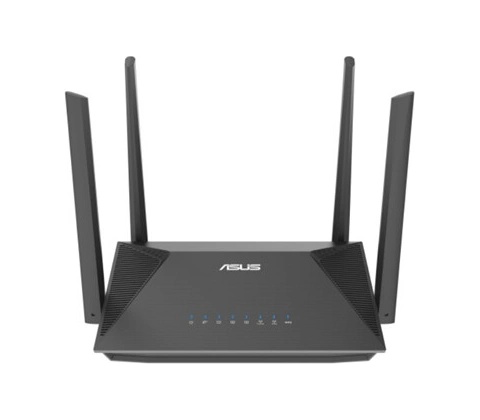

Asus RT-AX52U

ASUS RT-AX52 (AX1800) Dual Band WiFi 6 Extendable Router, Instant Guard, Parental Control Scheduling, Built-in VPN, AiMesh Compatible

New-Gen WiFi Standard – Supporting 802.11ax WiFi standard for better efficiency and throughput.

Ultra-fast WiFi Speed – RT-AX52 supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.

Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicating with multiple devices simultaneously

Easy Extendable Network – Enjoy seamless roaming with rich, advanced features by adding any AiMesh-compatible router.

RT-AX52

Network Standard

IPv6

IPv4

WiFi 6 (802.11ax)

WiFi 5 (802.11ac)

WiFi 4 (802.11n)

IEEE 802.11g

IEEE 802.11b

IEEE 802.11a

Product Segment

AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

WiFi Data Rate

• WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 5 (802.11ac) : up to 867 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• 802.11g : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11a : up to 54 Mbps

Antenna

External antenna x 4

Transmit / Receive 5GHz 2x2 2.4GHz 2x2

Processor 1.3GHz dual-core processor

Memory 128 MB Flash 256 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80 MHz bandwidth

Operating Frequency 2.4GHz / 5GHz

Operating Mode

Access Point, AiMesh Node, Repeater, Router

I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3

Buttons

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1

WAN x 1

LAN x 3 2.4G x 1 5G x 1

WPS x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 1 A current

Package Content .RT-AX52 .RJ45 Ethernet Cable .Power Adapter .Quick Start Guide .Warranty Card

Product Weight (g) 298g

Product Dimensions 192 x 126.3 x 47.5 mm (WxDxH)

AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node

Parental Control

Customized Internet Schedule

Guest Network "The Guest Network provides Internet connection for guests but restricts access to your local network."

Security

Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, SSH, Firewall

VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP

Traffic Control • Bandwidth Limiter, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, Port triggering, DMZ, DDNS

LAN

DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, Wake on LAN (WOL)

Wireless

UTF-8 SSID, WiFi MAC Address Filter, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming

Administration

Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log
