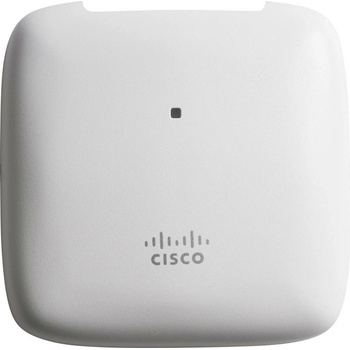

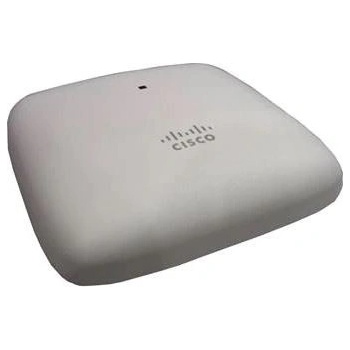

Cisco CBW240AC-E

CBW240AC

CBW240AC 802.11ac 4x4 Wave 2 Access Point Ceiling Mount

Prístupový bod Cisco® Business 240AC poskytuje ideálnu kombináciu predvídateľného výkonu v kompaktnej podobe. Táto platforma obsahuje funkcie protokolu 802.11ac Wave 2 a je ideálna pre malé a stredne veľké podnikové nasadenia.

Prístupový bod Cisco Business 240AC

Ideálny pre malé a stredné siete, prístupový bod Cisco Business 240AC poskytuje špičkový výkon v podnikovej triede 4x4 viacužívateľský viacnásobný vstup viacnásobný výstup (MU-MIMO), štyri prístupové body priestorového toku, ktoré podporujú Institute of Štandard elektrických a elektronických inžinierov (IEEE) 802.11ac Wave 2. Prístupový bod Cisco Business 240AC rozširuje podporu o novú generáciu klientov Wi-Fi, ako sú napríklad smartphony, tablety a vysokovýkonné notebooky, ktoré majú integrovanú podporu 802.11ac Wave 1 alebo Wave 2.

Item

Specification

Authentication and security ? Wi-Fi Protected Access 2 (WPA2 ); WPA3 is coming in a future release ? 802.1X, Remote Authentication Dial-In User Service (RADIUS); Authentication, Authorization, and Accounting (AAA) ? Segmentation via VLANs (up to 16) ? 802.11r and 802.11i ? Guest network can also authenticate against: Google and Facebook

Maximum clients ? Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point, or 1000 in a system

Maximum # of access points ? 50 ? Recommended up to 25

Ma Max # of mesh extenders ? Maximum number of associated Cisco Business mesh extenders: 25 per access point, up to 8 hops 802.11ac ? 4x4 Downlink (DL) MU-MIMO with four spatial streams, up to 1733 Mbps ? 802.11ac beamforming ? 20, 40, 80 MHz channels ? Dynamic Frequency Selection (DFS)

Integrated antenna ? 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional ? 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional

Ethernet ports ? Authentication with 802.1X or MAC filtered ? Dynamic VLAN or per port

Interfaces ? 2 x Gigabit (10/100/1000BASE-T autosensing), Power over Ethernet (PoE) ? RJ-45 console port (not functional) ? USB 2.0 (not functional)

Indicators ? Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H) ? Access point (without mounting brackets): 7 x 7 x 1.5 in

Weight ? 0.94 lb (0.43 kg)

Powering options ? 802.3af/at Ethernet switch, a Cisco Business Switch with PoE is recommended ? Optional Cisco Business Power over Ethernet injector (CB-PWRINJ-xx)

Power draw ? 13.2W

Environmental

• ? Nonoperating (storage) temperature: —22° to 158°F (—30° to 70°C)
• ? Nonoperating (storage) altitude test: 25°C, 15,000 ft
• ? Operating temperature: 32° to 122°F (0° to 50°C)
• ? Operating humidity: 10% to 90% (noncondensing)
• ? Operating altitude test: 40°C, 9843 ft
• Note: When ambient operating temperature exceeds 40°C, then the radio transmit duty cycle may be limited to not greater than 50%.

System memory 1GB MB DRAM, 256 MB flash

Warranty

Cisco Business Limited lifetime hardware warranty

Free software updates, no service contract required

Available transmit power settings3 2.4 GHz ? Up to 20 dBm 5 GHz ? Up to 23 dBm

Frequency band and 20-MHz operating channels

A (A regulatory domain): ? 2.412 to 2.462 GHz; 11 channels ? 5.180 to 5.320 GHz; 8 channels ? 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ? 5.745 to 5.825 GHz; 5 channels

B (B regulatory domain): ? 2.412 to 2.462 GHz; 11 channels ? 5.180 to 5.320 GHz; 8 channels ? 5.500 to 5.700 GHz; 11 channels ? 5.745 to 5.865 GHz; 7 channels

C (C regulatory domain): ? 2.412 to 2.472 GHz; 13 channels ? 5.745 to 5.825 GHz; 5 channels

D (D regulatory domain): ? 2.412 to 2.462 GHz; 11 channels ? 5.180 to 5.320 GHz; 8 channels ? 5.745 to 5.825 GHz; 5 channels

E (E regulatory domain): ? 2.412 to 2.472 GHz; 13 channels ? 5.180 to 5.320 GHz; 8 channels ? 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)

F (F regulatory domain): ? 2.412 to 2.472 GHz; 13 channels ? 5.745 to 5.805 GHz; 4 channels

G (G regulatory domain): ? 2.412 to 2.472 GHz; 13 channels ? 5.745 to 5.865 GHz; 7 channels

H (H regulatory domain): ? 2.412 to 2.472 GHz; 13 channels ? 5.180 to 5.320 GHz; 8 channels ? 5.745 to 5.825 GHz; 5 channels

I (I regulatory domain): ? 2.412 to 2.472 GHz; 13 channels ? 5.180 to 5.320 GHz; 8 channels

K (K regulatory domain): ? 2.412 to 2.472 GHz; 13 channels ? 5.180 to 5.320 GHz; 8 channels ? 5.500 to 5.620 GHz; 7 channels ? 5.745 to 5.805 GHz; 4 channels

N (N regulatory domain): ? 2.412 to 2.462 GHz; 11 channels ? 5.180 to 5.320 GHz; 8 channels ? 5.745 to 5.825 GHz; 5 channels

Q (Q regulatory domain): ? 2.412 to 2.472 GHz; 13 channels ? 5.180 to 5.320 GHz; 8 channels ? 5.500 to 5.700 GHz; 11 channels

R (R regulatory domain): ? 2.412 to 2.472 GHz; 13 channels ? 5.180 to 5.320 GHz; 8 channels ? 5.660 to 5,825 GHz; 8 channels (excludes 5.700 to 5.745 GHz)

S (S regulatory domain): ? 2.412 to 2.472 GHz; 13 channels ? 5.180 to 5.320 GHz; 8 channels ? 5.500 to 5.700 GHz; 11 channels ? 5.745 to 5.825 GHz; 5 channels

T (T regulatory domain): ? 2.412 to 2.462 GHz; 11 channels ? 5.180 to 5.320 GHz; 3 channels ? 5.500 to 5.700 GHz; 12 channels ? 5.745 to 5.825 GHz; 5 channels

Z (Z regulatory domain): ? 2.412 to 2.462 GHz; 11 channels ? 5.180 to 5.320 GHz; 8 channels ? 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ? 5.745 to 5.825 GHz; 5 channels

Note: Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit https://www.cisco.com/go/aironet/compliance.

Maximum number of nonoverlapping channels 2.4 GHz ? 802.11b/g: ? 20 MHz: 3 ? 802.11n: ? 20 MHz: 3 5 GHz ? 802.11a: ? 20 MHz: 26 FCC, 16 EU ? 802.11n:

• ? 20 MHz: 26 FCC, 16 EU
• ? 40 MHz: 12 FCC, 7 EU

? 802.11ac:

• ? 20 MHz: 26 FCC, 16 EU
• ? 40 MHz: 12 FCC, 7 EU
• ? 80 MHz: 5 FCC, 3 EU
• Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Compliance standards ? Safety: ? IEC 60950-1 ? EN 60950-1 ? AS/NZS 60950.1 ? UL 60950-1 ? CAN/CSA-C22.2 No. 60950-1 ? UL 2043 ? Class III Equipment ? EMC/EMI:

Emissions: ? CISPR 32 (rev. 2015) ? EN 55032 (rev. 2012/AC:2013) ? EN 55032 (rev. 2015) ? EN61000-3-2 (rev. 2014) ? EN61000-3-3 (rev. 2013) ? KN61000-3-2 ? KN61000-3-3 ? AS/NZS CISPR 32 Class B (rev. 2015) ? 47 CFR FCC Part 15B ? ICES-003 (rev. 2016 Issue 6, Class B) ? VCCI (V3) ? CNS (rev. 13438) ? KN-32 ? TCVN 7189 (rev. 2009)

Immunity: ? CISPR 24 (rev. 2010) ? EN 55024 / EN 55035 (rev. 2010)

Emissions and Immunity: ? EN 301 489-1 (v2.1.1 2017-02) ? EN 301 489-17 (v3.1.1 2017-02) ? QCVN (18:2014) ? KN 489-1 ? KN 489-17 ? EN 60601 (1-1:2015) ? Radio: ? EN 300 328 (v2.1.1) ? EN 301 893 (v2.1.1) ? AS/NZS 4268 (rev. 2017) ? 47 CFR FCC Part 15C, 15.247, 15.407 ? RSP-100 ? RSS-GEN ? RSS-247 ? China regulations: State Radio Regulation of China (SRRC) ? LP0002 (rev 2018.1.10) ? Japan Std. 33a, Std. 66, and Std. 71 ? RF Safety: ? EN 50385 (rev. Aug 2002) ? Australian Radiation Protection and Nuclear Safety Agency (ARPANSA) ? AS/NZS 2772 (rev. 2016) ? EN 62209-1 (rev. 2016) ? EN 62209-2 (rev. 2010) ? 47 CFR Part 1.1310 and 2.1091 ? RSS-102 ? IEEE standards: ? IEEE 802.3 ? IEEE 802.3ab ? IEEE 802.3af/at ? IEEE 802.11 a/b/g/n/ac ? IEEE 802.11h, 802.11d ? Energy efficiency: ? Reg. 278/2009 EuP Lot 7, Tier 1 4/27/2010, Tier 2 4/27/2010 Level V ? Reg. 1275/2008 EuP Lot 6, Tier 1 1/7/2010, Tier 2 4/27/2013. Applies to EMC Class B products ? EISA 2007, Level V ? NRCan Level V ? AS/NZS 4665.2, MEPS Level V ? China Energy Conservation Program (CECP) Level V ? Security: ? 802.11i, Wi-Fi Protected Access 2 (WPA2), WAP3 (future), WPA ? 802.1X ? Advanced Encryption Standards (AES) ? Extensible Authentication Protocol (EAP) types: ? EAP-Transport Layer Security (TLS) ? EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ? Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ? EAP-Flexible Authentication via Secure Tunneling (EAP-FAST) ? PEAP v1 or EAP-Generic Token Card (GTC) ? EAP-Subscriber Identity Module (SIM)

Data rates supported

• 802.11b: 1, 2, 5.5, and 11 Mbps
• 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
• 802.11n data rates on 2.4 GHz and 5GHz: 6.5 to 600Mbps (only 20 MHz and MCS 0 to MCS 15)
• 802.11ac data rates (5 GHz): 6.5 to 1733Mbps (MCS0-MCS9)
